Flashforge Multi-Color Printers: AD5X vs Creator 5 Toolchangers

The line-up at a glance

Flashforge Multi-Color Printers Compared

From the notebook

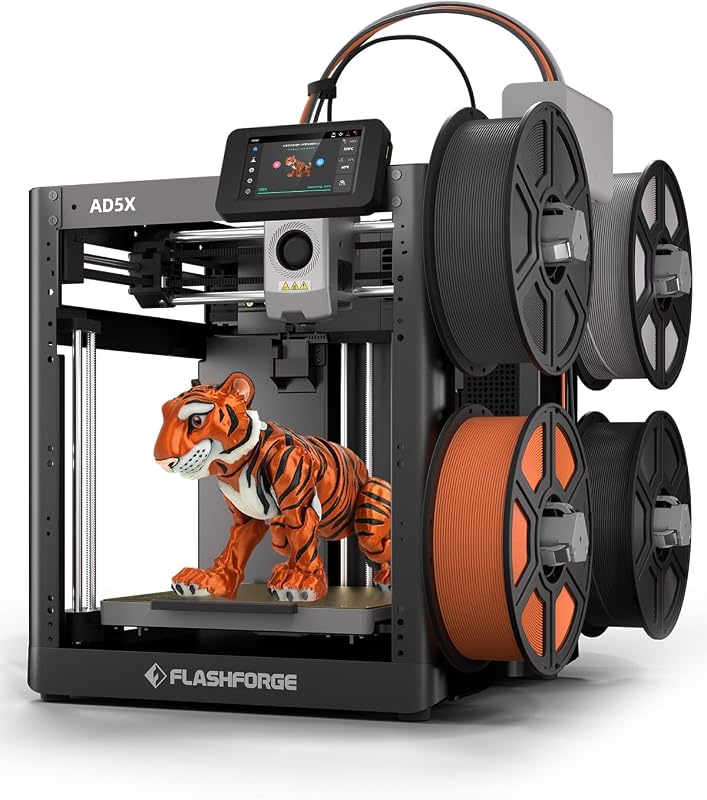

FLASHFORGE AD5X Multi-Color & Material 3D for High-Flow Desktop Printing

The FLASHFORGE AD5X Multi-Color & Material 3D expands upon the desktop CoreXY platform by bundling Flashforge’s Intelligent Filament System. Built with an all-metal chassis weighing 11 kilograms and dimensions of 14.29 by 14.8 by 16.26 inches, this printer maintains travel speeds up to 600 mm/s with 20 m/s² acceleration. Multi-color coordination is powered by the integrated IFS unit, which manages automated loading and unloading for four distinct filament spools and supports continuous automatic replenishment across up to four kilograms of reserve filament.

To support abrasive and specialized materials, the system incorporates a 300°C high-temperature nozzle and a large-flow hotend capable of volumetric throughput rates up to 32 mm³/s. This high-capacity melt zone ensures stable layer bonding when extruding abrasive carbon fiber filament, flexible TPU, PETG, and PLA. Workflow management is driven by a 4.3-inch color touchscreen, one-click auto leveling, resonance vibration compensation, filament runout detection, and power-loss recovery. For workshop fleet managers, the flashforge 3d printer ecosystem supports centralized remote control and parameter tuning through Orca-Flashforge and Flash Maker software.

This configuration suits makers and commercial model makers seeking the convenience of the flashforge ad5x ifs system for automated spool handoffs during long-duration prints. It eliminates manual filament reloading and allows large multi-color jobs to run unattended. However, because it still routes different filament strands through a shared melt zone, users who prioritize instantaneous tool changes without nozzle purging will want to consider the Creator 5 toolchangers instead.

From the notebook

FLASHFORGE Creator 5 Pro 4-Toolhead 3D for Engineering Grade Thermoplastics

The FLASHFORGE Creator 5 Pro 4-Toolhead 3D represents an industrial-grade iteration of Flashforge’s multi-material architecture, engineered specifically for high-stress manufacturing environments. Housed in an enclosed chassis weighing 39 pounds with dimensions of 16 by 14 by 18 inches, the printer operates an active heated build chamber capable of reaching 65°C. This thermal management environment prevents layer delamination, thermal shrinkage, and warping when printing industrial thermoplastics such as ABS, PC, PA, and complex carbon-reinforced composites like PA-CF, PET-CF, PPA-CF, and PPS-CF.

Kinematic accuracy is delivered through precision linear guide rails, 1.5GT high-torque timing belts, and a rigid CoreXY frame operating at print speeds up to 600 mm/s. Instead of purging filament between color swaps, this flashforge multi toolhead printer employs a 7-second FlashSwap system that mechanically exchanges four fully independent toolheads. This toolchanger architecture achieves near-zero filament waste and accelerates multi-color throughput up to five times compared to single-nozzle designs. Workspace air quality is managed by an integrated dual-filtration system combining HEPA 13 and activated carbon stages, while automated toolhead offset calibration, dynamic flow compensation, and a built-in HD chamber camera provide comprehensive print oversight.

This unit is the dedicated choice for industrial engineers, manufacturing facilities, and prototyping labs that demand dimensional repeatability with high-performance polymers. Its active chamber and robust toolchanger make it superior to the open-frame AD5X models when processing structural engineering materials, though its 39-pound industrial chassis is less suited for users seeking lightweight portability.

From the notebook

FLASHFORGE Creator 5 Pro 4-Toolheads Enclosed for Workshop Air Quality and Safety

The FLASHFORGE Creator 5 Pro 4-Toolheads Enclosed brings industrial multi-head fabrication into an enclosed, safety-oriented layout tailored for classrooms, shared design labs, and office environments. Built from an all-metal chassis measuring 20.35 by 21.06 by 19.5 inches and weighing 18.1 kilograms, this machine pairs a rigid CoreXY motion system with precision linear rails and 1.5GT high-torque drive belts. It sustains operating speeds of 600 mm/s backed by 30,000 mm/s² acceleration, auto bed leveling, and dynamic toolhead offset calibration.

Multi-material execution is driven by the 7-second FlashSwap toolchanger, using four independent toolheads to eliminate purge towers and prevent cross-material contamination. The actively heated 65°C build chamber maintains uniform ambient conditions to print technical filaments such as ABS, ASA, PC, and PA nylon without warping. To maintain a healthy indoor work environment, the dual-layer HEPA 13 and activated carbon filtration system captures 99 percent of airborne ultrafine particles and chemical fumes. Safe operation is reinforced by physical door-open detection sensors, tangle detection, and filament runout monitoring. Selecting premium flashforge 3d printer filament ensures reliable feeding through the toolheads, while nozzle servicing is simplified by a two-screw hex wrench release mechanism and a flexible magnetic PEI build surface.

This fully enclosed edition suits schools, shared collaborative workspaces, and safety-conscious technicians who require the capabilities of the flashforge creator 5 pro alongside certified particle containment and door interlocks. The setup ensures consistent print quality across structural polymers, though users with restricted desk space might find its broader 20-inch frame more challenging to accommodate than the AD5X series.

From the notebook

FLASHFORGE Creator 5 Multi-Toolhead 3D Printer for Soluble Supports and Mixed Filaments

The FLASHFORGE Creator 5 Multi-Toolhead 3D Printer combines multi-material production agility with advanced vibration cancellation algorithms in a medium-format footprint. Encased in a chassis measuring 14.8 by 14.29 by 16.26 inches and weighing 14 kilograms, the printer leverages a 600 mm/s CoreXY drive mechanism designed to eliminate surface artifacts such as ghosting and ripples. Its synchronized toolhead carriage coordinates four separate printing assemblies to deliver dimensionally accurate models comparable to single-extruder machinery.

The centerpiece of this model is its rapid 7-second FlashSwap changer, which keeps four individual toolheads preheated and primed with their respective materials. This architecture enables multi-material printing by combining primary build filaments—such as PLA, PETG, TPU-95A, TPU-64D, or carbon fiber blends—with specialized water-soluble support materials including PVA and BVOH. Because the toolheads switch in seven seconds without purging, complex geometries with steep overhangs separate cleanly after immersion without wasting primary build filament. A top external mount is provided specifically for flexible TPU-90A feeding, while automatic bed leveling and smart extrusion routines ensure uniform initial layer bonding.

This model suits digital sculptors, prop makers, and functional prototyping studios that routinely build intricate geometries requiring dissolvable PVA or BVOH support scaffolding. It provides the tool-switching speed and purge-free efficiency of Flashforge’s commercial toolchanging line while maintaining a more compact desktop footprint. Where it gives way to the Creator 5 Pro editions is in the absence of an active 65°C heated chamber, making the Pro models preferable for high-shrinkage materials like ABS and PC.

Before you choose

How to Choose the Right Flashforge Multi-Color Printer

When determining which flashforge multi color printer to buy, shoppers must evaluate the fundamental difference between single-nozzle filament retraction systems and multi-toolhead mechanical changers. A comprehensive flashforge multi color comparison centers on material waste, chamber temperature control, workflow speed, and available workspace dimensions.

• Purge Waste vs. Independent Toolheads: Single-nozzle units like the standard FLASHFORGE AD5X Multi-Color 3D Printer and the FLASHFORGE AD5X Multi-Color & Material 3D with IFS swap colors by cutting, retracting, and purging filament through one hotend. This approach saves chassis space and machine weight, but it generates purge tower waste and extends total print times. Conversely, the FLASHFORGE Creator 5 Multi-Color 3D Printer and the FLASHFORGE Creator 5 Multi-Toolhead 3D Printer utilize the 7-second FlashSwap system with four distinct toolheads, completely eliminating purge waste and accelerating multi-color jobs up to five times.
• Filament Compatibility and Chamber Heating: If your fabrication work is restricted to PLA, PETG, and standard decorative multi-color models, the 300°C hotend on the AD5X series provides adequate thermal capacity. However, if your production involves technical engineering polymers like ABS, PC, ASA, or carbon fiber nylon, an actively heated environment is mandatory. The FLASHFORGE Creator 5 Pro 4-Toolhead 3D and the FLASHFORGE Creator 5 Pro 4-Toolheads Enclosed feature an active 65°C heated chamber that prevents warp deformation and layer separation in high-shrinkage thermoplastics.
• Mixed-Material Support Scaffolding: Projects involving complex internal cavities, overhangs, or zero-tolerance mechanical linkages benefit heavily from dissolvable support filaments like PVA and BVOH. Combining incompatible materials through a single nozzle often causes cross-contamination or clogging. The Creator 5 line, including the FLASHFORGE Creator 5 Multi-Toolhead 3D Printer, manages dedicated support filaments through separate toolheads, ensuring clean separation and razor-sharp overhangs without manual scraping.
• Workspace Footprint, Portability, and Air Safety: For compact desks, portable travel kits, or educational carts, the 11-kilogram FLASHFORGE AD5X Multi-Color & Material 3D offers the most compact footprint. On the other hand, larger industrial workshops or indoor classrooms require enclosed units with certified air scrubbing. The FLASHFORGE Creator 5 Pro 4-Toolheads Enclosed incorporates dual HEPA 13 and activated carbon filters along with door-open safety interlocks, making it the safest selection for enclosed indoor printing.

Questions people ask

FAQ

How does the Flashforge AD5X handle multi-color filament feeding?

The Flashforge AD5X manages multi-color fabrication using an automated feeding and retraction system that guides up to four filament spools into a single direct-drive hotend. The model equipped with the Intelligent Filament System (IFS) automates spool feeding, retraction, and continuous replenishment across up to four kilograms of reserve filament, simplifying multi-spool material management during prolonged print runs.

What is the advantage of the 7-second FlashSwap system on the Creator 5?

The 7-second FlashSwap system on the Creator 5 series uses four independent toolheads, each preheated and loaded with its own filament. Instead of purging filament through a shared nozzle during every layer transition, the printer mechanically docks the idle toolhead and picks up the active one in seven seconds. This eliminates purge towers, prevents color cross-contamination, and runs multi-color jobs up to five times faster.

Can the Flashforge AD5X print flexible TPU filament in multiple colors?

The FLASHFORGE AD5X Multi-Color & Material 3D listing indicates support for flexible TPU printing alongside carbon fiber, PLA, and PETG using its 300°C nozzle and 32 mm³/s high-flow hotend. However, single-nozzle retraction systems can sometimes encounter feeding resistance with ultra-soft flexible filaments. For dedicated multi-color TPU workflows or mixed TPU-and-rigid builds, the four independent direct-drive extruders on the Creator 5 offer a dedicated path designed specifically for flexible materials.

Why do the Creator 5 Pro models include an active heated chamber and HEPA filtration?

The active 65°C heated chamber on the Creator 5 Pro maintains an elevated internal temperature to eliminate warping, layer splitting, and thermal deformation when printing engineering-grade thermoplastics like ABS, PC, and nylon. Because processing these advanced materials generates airborne particles and strong fumes, Flashforge integrates a dual HEPA 13 and activated carbon filtration system to neutralize odors and capture 99 percent of ultrafine particulates inside indoor workspaces.

Which Flashforge multi-color printer suits small studio spaces best?

The standard FLASHFORGE AD5X Multi-Color 3D Printer and the IFS-equipped SZ-AD5X are the best choices for small studio spaces, portable worktables, and compact offices. Weighing between 11 kilograms and 24.3 pounds with exterior chassis dimensions under 18 inches, the AD5X footprint takes up far less surface area than the larger, 39-pound enclosed Creator 5 Pro workstations.
